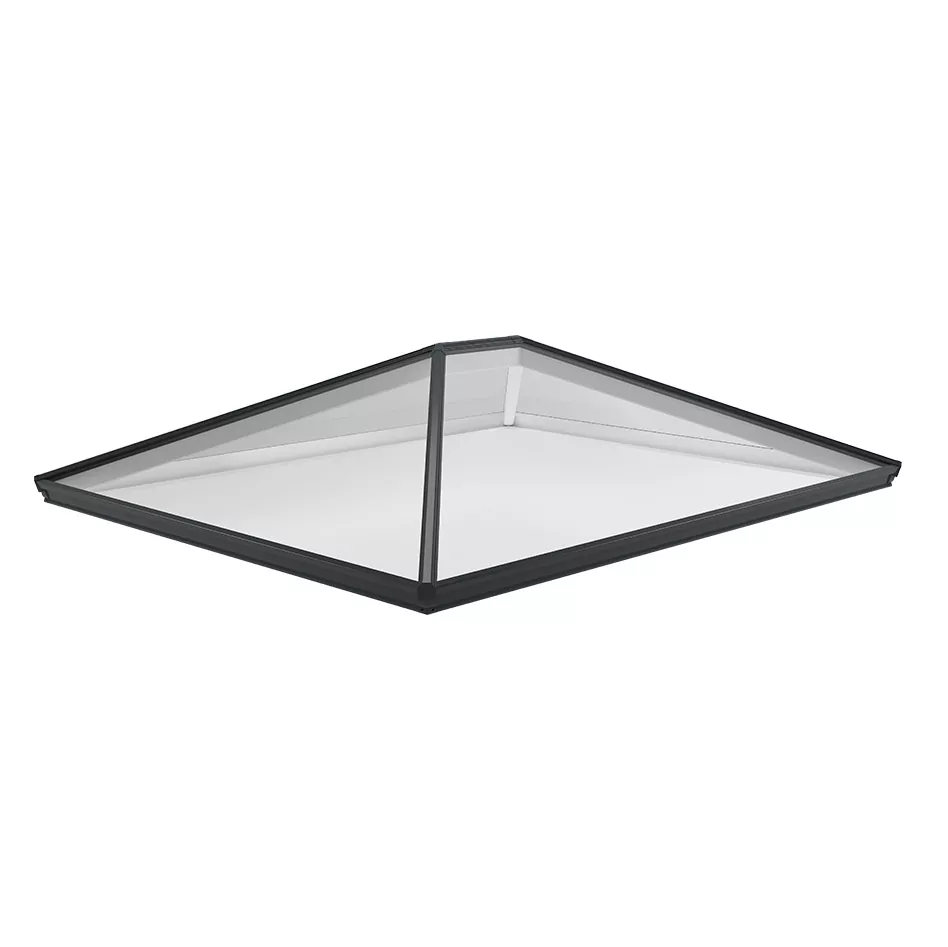

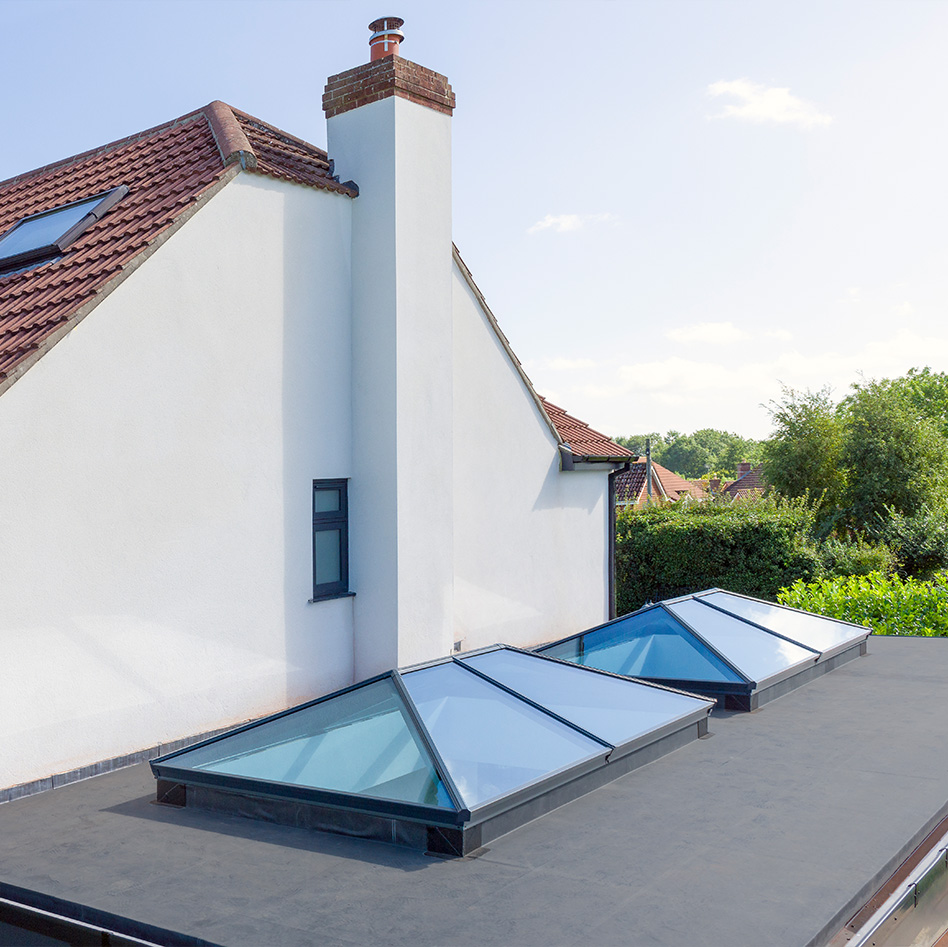

Korniche Roof Lantern

• It’s simple to install – view the helpful view guide below to see how
• Bespoke sizes available – If you require a bespoke size then don’t hesitate to get in touch for a quote.
• Self-clean glass at no extra cost
• A range of glass specifications
• A range of inside and outside frame colours
• Quality materials and thermally-efficient glass
• Perfect for a range of buildings, including commercial properties and personal properties

• Slim frame roof lantern design
• Slim internal sight lines and low external sight lines
• Thermally-efficient glass
• Custom made with a choice of external frame colours
• 10 year warranty
• Reduced risk of condensation
• Free self clean glass as standard
• Reduces heating costs
• A beautiful focal point for any room

Perfect Fit Guaranteed

Every Korniche Roof Lantern is custom-made to your exact specifications. For the best fit:

• Measure the external upstand (including roofing material) length and width.

• Your purchased size should be 12mm larger (6mm per side) than the finished upstand. (Example: For a 1000mm x 1000mm lantern, your upstand should measure 988mm x 988mm

• Minimum upstand dimensions: 69mm width x 150mm height.

Fast, Hassle-Free Installation

Designed for efficiency, the Korniche lantern ensures a quick, secure, and watertight fit:

• Delivered as a pre-checked kit with all parts included.

• Comes with a detailed installation guide for builders.

• No cutting or trimming needed – the only lantern that eliminates on-site adjustments.

Innovative, Weatherproof Design

• Factory-fitted cast aluminium bosses & rafters for strong, single-bolt connections.

• Pre-installed silicone seals & Q-Lon gaskets reduce installer workload.

• Clip-fit glazing system – 24mm double-glazed units snap into place in seconds.

• Only one bead of silicone sealant required (applied under the eaves beam).

The Final Touch for Your Extension

A Korniche Roof Lantern isn’t just functional—it’s the stunning centerpiece that completes your flat-roof extension with elegance and precision.

Superior Thermal Efficiency

Thermally Broken Eaves Beam
The foundation of our roof lantern’s energy efficiency starts at the base. The eaves beam features a full thermal break, creating an insulated barrier between aluminum sections to minimize heat transfer.

Innovative Insulating T-Bar
Our exclusive high-performance T-bar bridges the gap between profiles and aluminum finishing caps, delivering the largest possible thermal break for maximum insulation.

Premium Glazing Options

Choose from a selection of high-performance self-cleaning glass options to match your style and needs. With U-values ranging from 1.0 to 1.2, our glazing ensures exceptional thermal efficiency without compromising on clarity or aesthetics.

Unmatched Strength & Stability

Engineered for resilience, the Korniche Roof Lantern offers unparalleled structural integrity while maintaining a sleek, minimalist design.

• Supports extreme loads—a 6m x 4m unit can bear over 8 tonnes.

• Optimized framework ensures maximum glass area with minimal rafters, providing unobstructed views and abundant natural light.

Ultimate Weather & Security Protection

Advanced Weatherproofing
Built to withstand the harshest conditions, our roof lantern uses premium seals and gaskets throughout, guaranteeing a watertight and draught-proof finish.

Tamper-Proof Security

• Innovative glass lock system keeps panes securely in place.

• Hidden fasteners under finishing caps ensure a clean, burglar-resistant design.

Sleek, Minimalist Design

With larger glass spans and fewer structural interruptions than any other system on the market, the Korniche Roof Lantern delivers an elegant, modern aesthetic while outperforming in strength and efficiency.

Production & Delivery Information

Current Lead Time: 2-3 working weeks (subject to variation based on workload)

Important Delivery Notes:

• A trained operative must be present to receive and unload the glass panels

• We advise against scheduling installation crews until delivery is complete

Delivery Charges:

• FREE to most UK mainland addresses

• £250 surcharge applies to these postcodes: AB, CT, DD, EH, FK, G, IV, KA, KW, KY, ML, PA, PH, PL, TR, TN23-26, TN28-30

Product Format:
The Korniche roof lantern arrives as a complete kit with all frame components pre-checked and ready for assembly.
