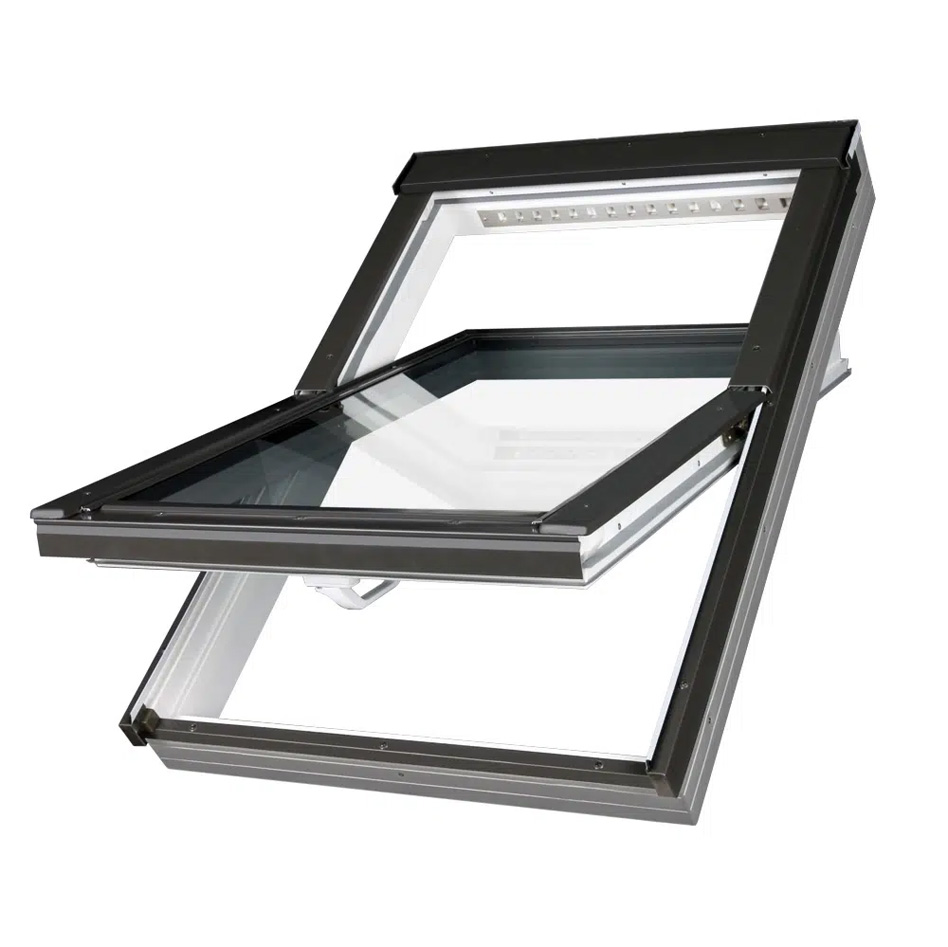

FAKRO White uPVC Centre Pivot Roof Window (PTP-V)

Name: FAKRO White uPVC Centre Pivot Roof Window (PTP-V)
SKU: 1168
Availability: InStock

Price From:

£319.59 Ex VAT

£383.51 inc VAT

AKRO roof windows are not supplied with flashing kits unless otherwise stated.
Glazing and U-values – for details please see Glazing Options opposite
V35 slide adjustable background ventilation.
“topSafe” security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049.
External aluminium colour reference RAL7022.
Internal frame white multi-chamber uPVC finish (galvanised steel profiles within chamber to strengthen for fixings.) Bottom placed handle with 2 micro opening positions.
Glass construction 4H-Tg15Ar-33.2mm overall thickness of 26mm with an anti-burglary class of laminate 33.2 (class p2a).
External tempered glass, Warm TGI Spacer filled with inert Argon gas.
Internal pane has two 3mm thick sheets of glass with layer of PVB Plastic membrane between them, on the inner side of the laminated glass there is a
Acoustic rating 33Db (-1.-4).
Can be used on roofs with pitches between 15-90º.

Size

Glazing

Flashing Kit

Clear

Can't find your size?

Looking for a different size? We may have more options available — contact us to check

Get in touch

Delivery Details

3-5 Working Day Delivery:

55cm x 98cm
66cm x 98cm
78cm x 98cm
78cm x 140cm
94cm x 118cm

20+ Working Day Delivery:

55cm x 78cm
55cm x 118cm
66cm x 118cm
78cm x 118cm
78cm x 160cm
94cm x 140cm
94cm x 160cm
114cm x 118cm
114cm x 140cm
134cm x 98cm

Measuring Guide

All measurements are displayed width x length on RW4Y and it is important that you leave a 10mm gap all the way around the window when fitting – this is for things like flashing and insulation. For example, if you had a 78x98cm window, the opening would need to be 80x100cm.

Glazing Guide

P2 is our most popular glazing option as it offers good insulation for habitable rooms whilst also having an anti-burglary class of laminate and a U-value of 1.3W/m²K. Glass construction from outside to inside = 4H-Tg15Ar-33.2T: • 4mm toughened glass outer pane • 15mm warm TGI spacer filled with inert Argon gas • 6.8mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating.

P5 is also a very popular choice for those who prefer a more insulated option with its triple glazing offering a u-Value of 1.01 W/m²K.

Glass construction from outside to inside = 4HS-Tg10Kr-4HT-Tg8Kr-33.2T:

4mm toughened glass outer pane with an easy maintenance layer
10mm warm TGI spacer filled with inert Krypton gas
4mm centre pane which is toughened with a low emission coating
8mm Warm TGI spacer filled with inert Krypton gas
6.2mm internal pane is an anti-burglary class of laminate 33.2 (class P2A, EN 356,1(B)1 wg EN 12600), complete with a low emission coating

If you require P5 glazing options then get in touch for more details.
